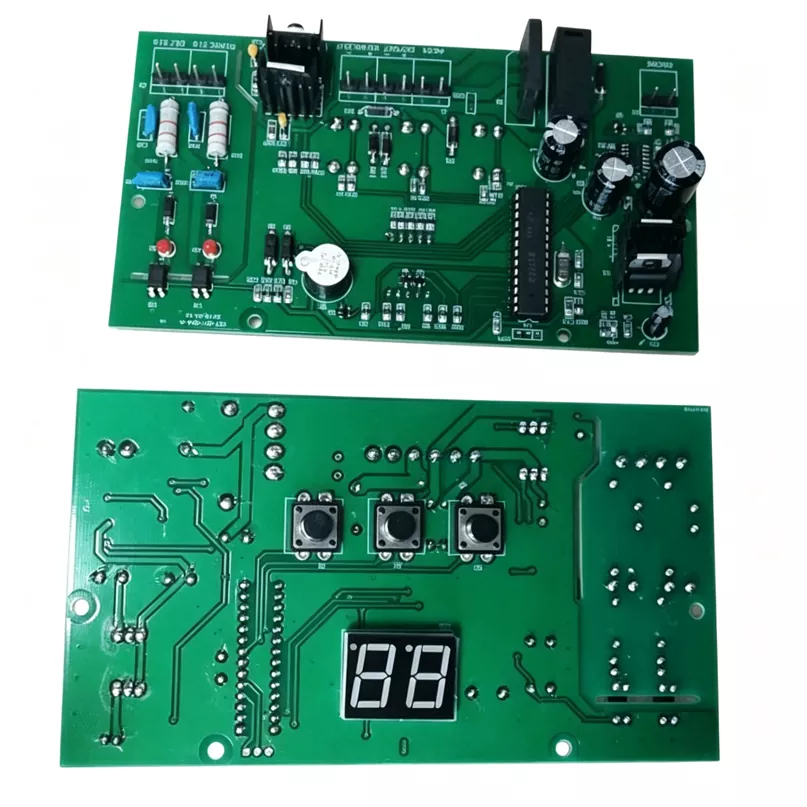

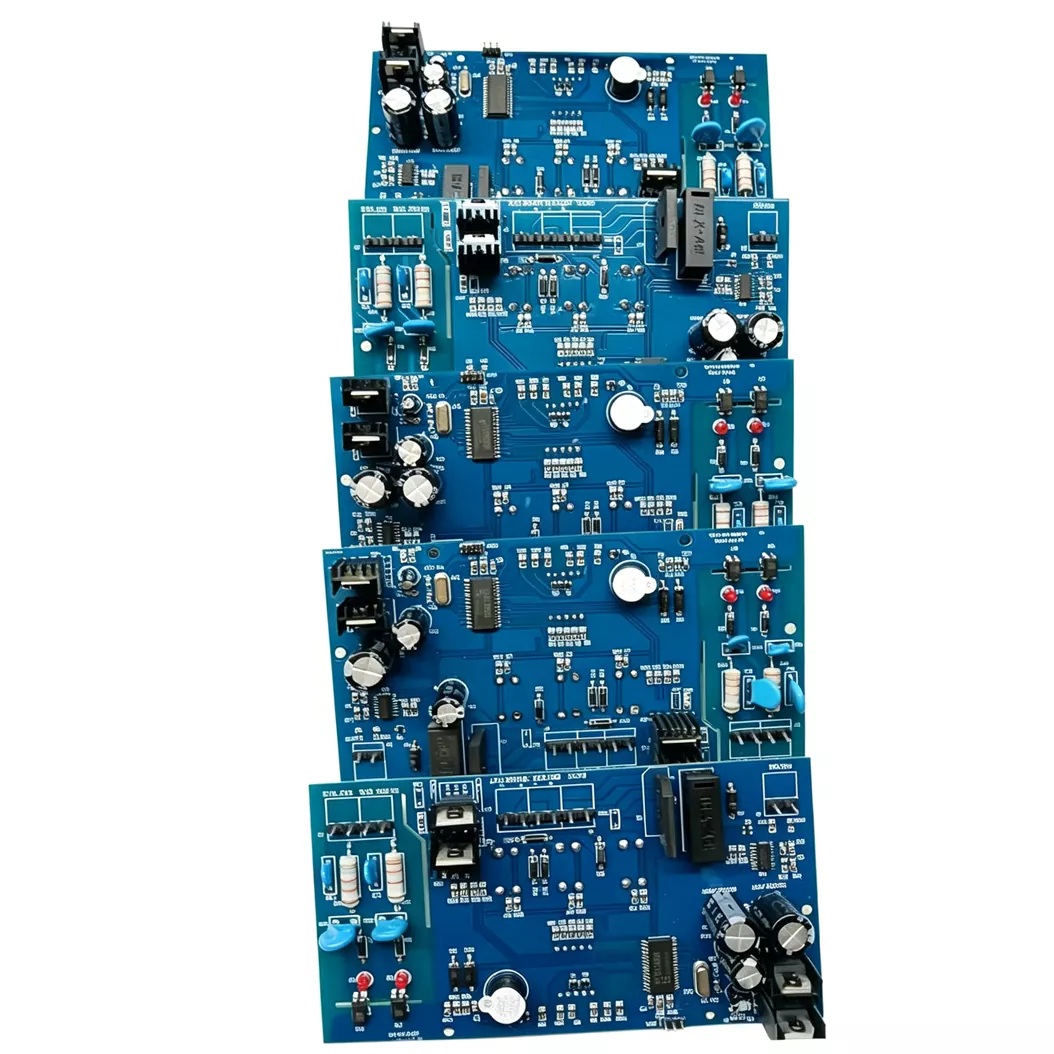

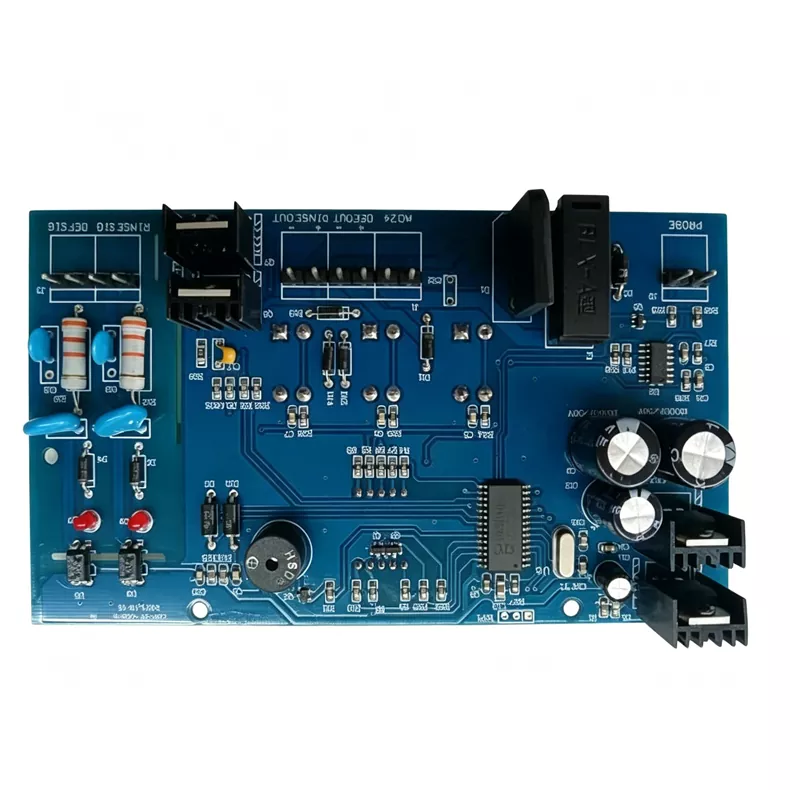

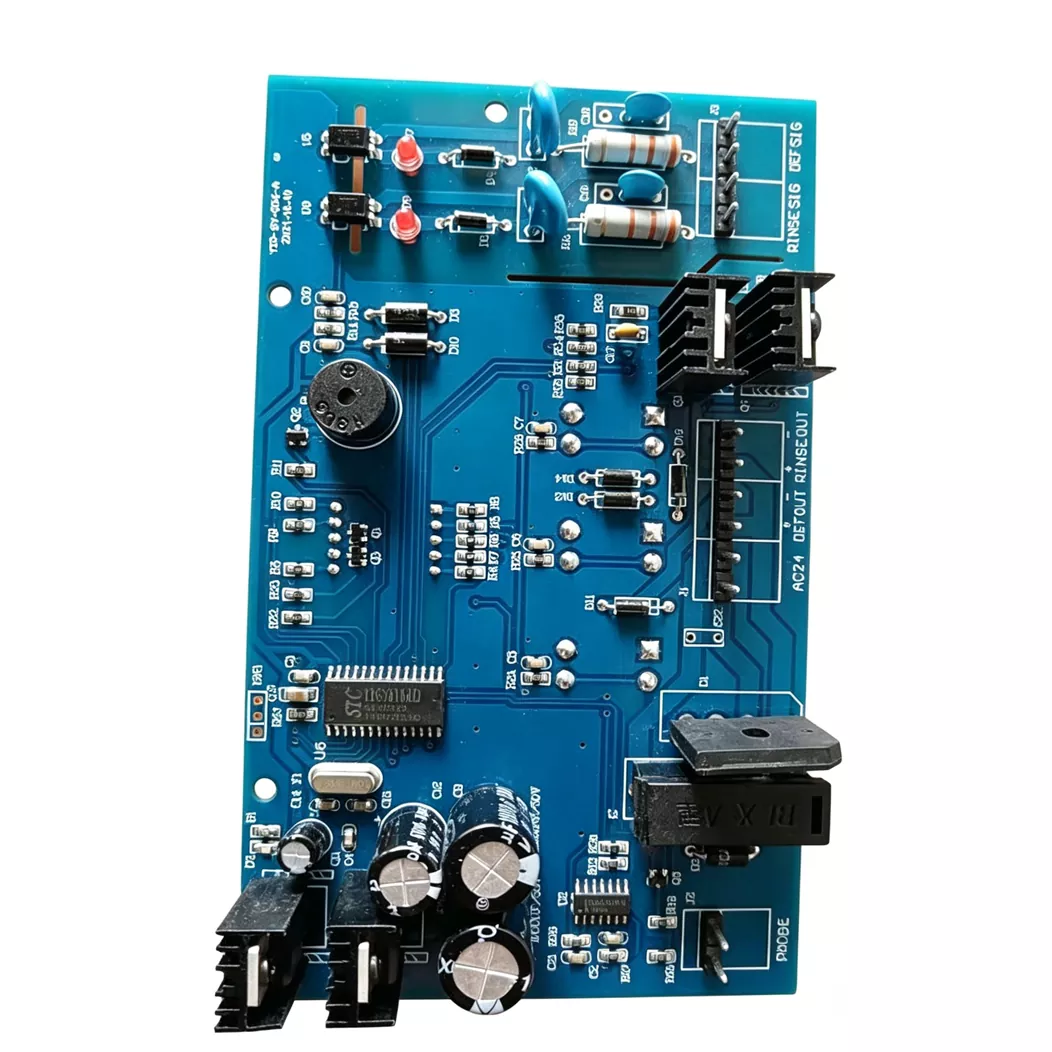

Dishwashers PCB

High-Performance Dishwashers PCB Manufacturing Solutions

When planning present day kitchen machines, the printed circuit board serves as the brain of your dishwasher framework. Our dishwashers pcb  arrangements combine progressed fabricating procedures with dependable execution measures to meet the requesting prerequisites of domestic apparatus producers. You require a circuit board that can handle water presentation, temperature varieties, and consistent utilize whereas keeping up steady execution. At Akeson Circuit Co., LTD, we get it these challenges. We provide premium quality sheets that control effective dishwasher operations worldwide.

Why Choose Our Dishwasher Control Boards?

Your dishwasher requires modern electronic control frameworks. These frameworks oversee water temperature, cycle timing, pump operations, and security highlights. Our circuit sheets give the establishment for these basic functions.

Superior Moisture Protection

Kitchen situations display one of a kind challenges for electronic components. Steam, mugginess, and temperature changes can harm ineffectively planned sheets. We apply specialized defensive coatings and utilize moisture-resistant materials in our fabricating process.

Our patch cover alternatives incorporate different colors with both reflexive and matte wraps up. Green, white, dark, yellow, ruddy, blue, purple, and brown choices guarantee your plan prerequisites are met. The defensive coating avoids erosion and amplifies item lifespan.

Precision Manufacturing Process

We take after a comprehensive 25-step fabricating prepare for multilayer sheets. Each step incorporates thorough quality control measures:

· Incoming assessment guarantees crude materials meet specifications

· Inner layer preparing makes exact circuit patterns

· Lamination bonds layers with culminate alignment

· Drilling accomplishes gap resiliences of ±0.05mm

· Plating gives uniform copper thickness

· Surface treatment alternatives incorporate HASL, ENIG, OSP, and drenching silver

Our double-sided board handle employments 20 carefully controlled steps. Both forms keep up strict quality guidelines all through production.

Technical Specifications for Appliance Applications

Board Capabilities

You can choose from 1 to 32 layers depending on your design complexity. Our maximum panel size reaches 650mm × 750mm. Board thickness ranges from 0.3mm for double-sided boards to 5.0mm for specialized applications.

Minimum mechanical penetrate estimate begins at 0.2mm with miniaturized scale vias as little as 0.1mm. Most extreme copper thickness comes to 6 OZ for high-current applications. Line width and dividing can be as fine as 0.076mm.

Advanced Features

Our impedance control maintains ±10% tolerance for standard applications. Special requirements can achieve ±8% tolerance. Hole copper thickness meets or exceeds 18μm with 25μm available for enhanced reliability.

HDI innovation bolsters 1+N+1 arrangements with 2+N+2 accessible for complex plans. Most extreme viewpoint proportion comes to 12:1 for challenging penetrating requirements.

Quality Control Excellence

Comprehensive Testing Program

Every dishwashers pcb  experiences careful electrical testing some time recently shipment. Our mechanized optical review (AOI) frameworks identify surrenders undetectable to manual assessment. Last quality control incorporates appearance review, work tests, and unwavering quality testing.

We maintain these quality targets:

· Product yield ≥ 99.8%

· On-time delivery rate ≥ 99%

· Customer complaint rate ≤ 0.5%

· Customer satisfaction ≥ 98%

Manufacturing Standards

Our quality control framework covers each generation arrange. Approaching quality control oversees provider connections and assesses crude materials. In-process quality control affirms to begin with articles, conducts testing assessments, and screens prepare statistics.

Outgoing quality control performs last appearance reviews and work tests. Quality confirmation building sets up quality benchmarks, conducts framework reviews, and calibrates test equipment.

Fast Delivery Options

Production Timeline

Quick tests for double-sided sheets provide in 2-3 days. Four-layer sheets total in 3-4 days for test amounts. Little clump generation ordinarily requires 5-8 days for double-sided plans and 8-10 days for four-layer configurations.

Mass generation timelines extend from 8-10 days for double-sided sheets to 16-18 days for ten-layer plans. Complex sheets with more than 14 layers require at slightest 20 days for mass production.

PCBA Services

We offer total gathering administrations past uncovered board fabricating. Our PCBA capabilities incorporate component obtainment, surface mount innovation, and through-hole get together. Most extreme component estimate comes to 45mm with extraordinary capabilities.

Minimum component measure down to 01005 chip resistors illustrates our exactness gathering skill. SMT component stature obliges up to 13mm for specialized components

Home Appliance Industry Experience

Kitchen machine producers select us for solid arrangements. Our sheets control different domestic apparatuses counting tvs, keen entryway locks, and reconnaissance gear. This assorted involvement reinforces our understanding of buyer item requirements.

We back car gadgets, mechanical control frameworks, and IoT applications. Organize communication gear and Driven control supplies moreover advantage from our fabricating expertise.

Get Started Today

Ready to discuss your dishwasher control board requirements? Our engineering team provides technical support throughout your design process. From initial concept to mass production, we ensure your dishwashers pcb  meets performance expectations.

Contact us at akesoncircuit@hotmail.com  to start your venture. We give nitty gritty cites, specialized determinations, and conveyance plans custom fitted to your needs. Let us offer assistance you make dependable, high-performance dishwasher control frameworks that surpass client desires.
