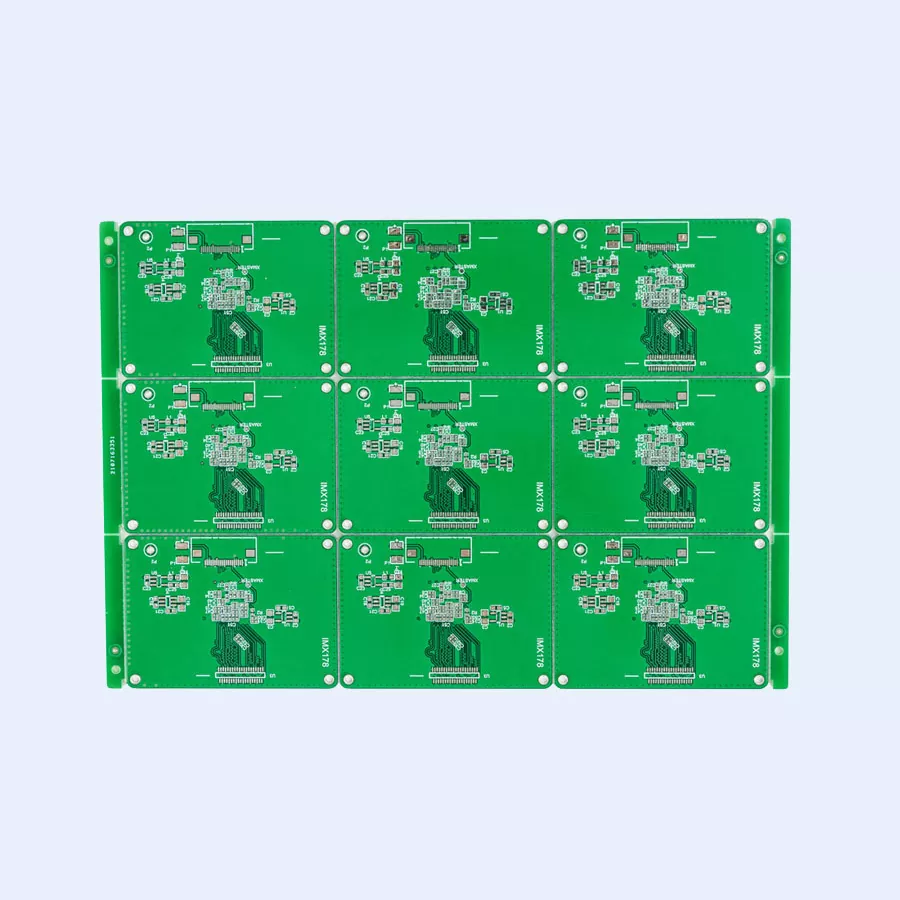

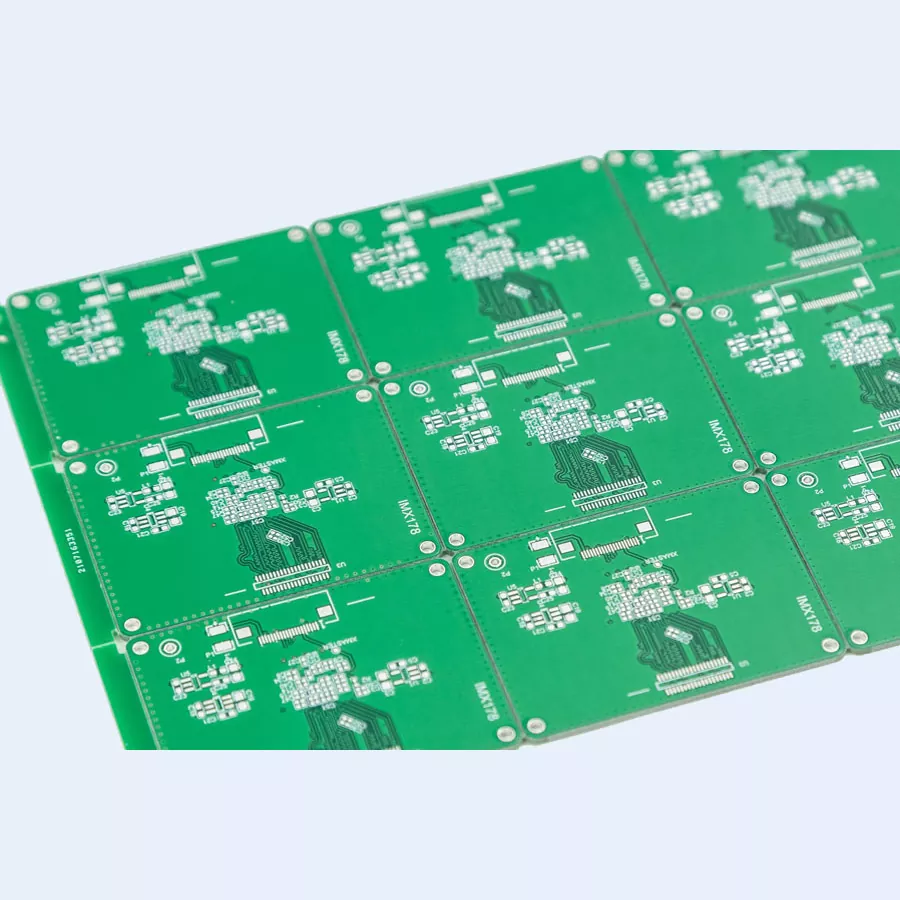

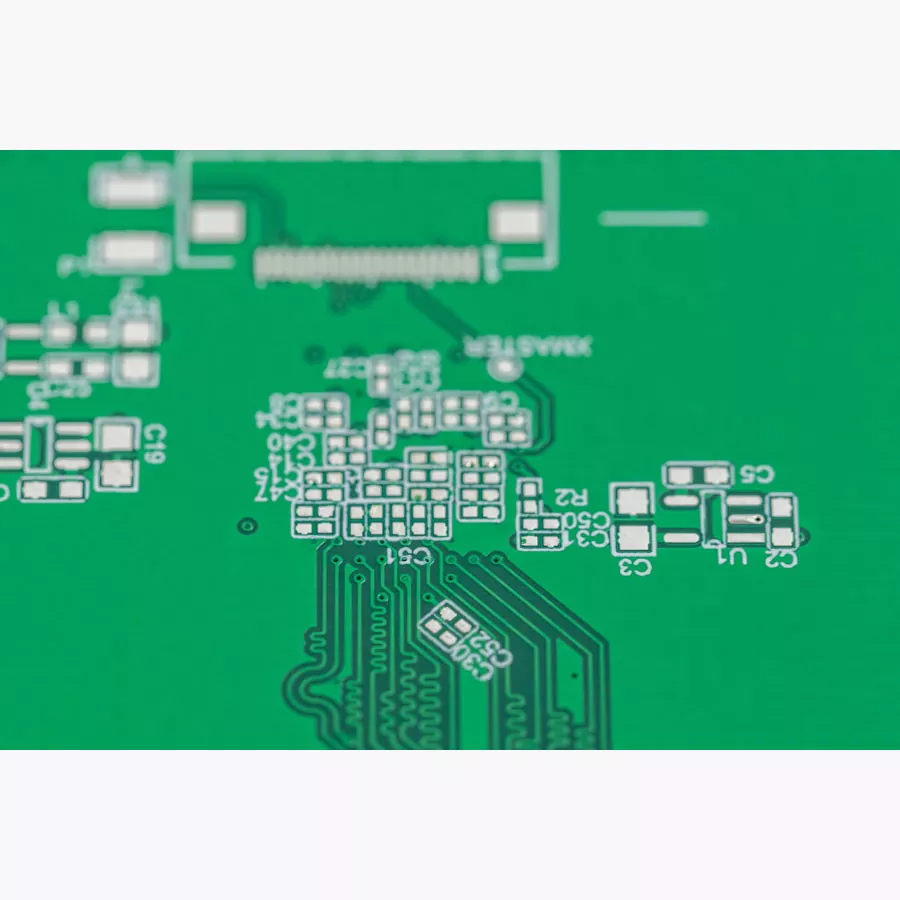

Engine Control Module PCB

High-Performance Engine Control Module PCB Solutions for Automotive Applications

When your automotive project demands precision, reliability, and cutting-edge performance, choosing the right Engine control module pcb  producer makes all the contrast. At Akeson Circuit Co., LTD, we specialize in conveying premium PCB arrangements particularly outlined for car motor administration frameworks. Our progressed fabricating forms guarantee your motor control modules work faultlessly in the most requesting situations. Whether you're creating next-generation vehicle frameworks or overhauling existing plans, our skill in car gadgets ensures predominant results.

Why Engine Control Module PCBs Require Specialized Manufacturing

Engine control modules serve as the brain of present day vehicles. They oversee fuel infusion, start timing, and emanation controls with split-second accuracy. This basic part requests PCBs that can handle tall temperatures, vibrations, and electrical obstructions without failure.

Your motor control framework needs sheets that keep up flag judgment over different layers. Our fabricating prepare addresses these challenges through thorough quality control and progressed materials choice. We get it that car applications cannot endure indeed minor defects.

Advanced Manufacturing Capabilities for Automotive PCBs

Multi-Layer Construction Excellence

Our multi-layer PCB handle takes after 25 exact fabricating steps. Each arrange experiences exhaustive review to guarantee your sheets meet car guidelines. We begin with approaching fabric assessment and continue through cutting, inward layer directing, and carving processes.

The lamination process bonds multiple layers into a solid, reliable structure. Our drilling capabilities achieve holes as small as 0.2mm with ±0.05mm tolerance. This precision enables dense component placement essential for compact engine control modules.

Technical Specifications You Can Trust

· Layer Count: 1-32 layers for complex automotive applications

· Maximum Panel Size: 650mm × 750mm

· Copper Thickness: Up to 6 OZ for high-current applications

· Minimum Line Width: 0.076mm (3 MIL) for dense routing

· Impedance Control: ±10% standard, ±8% for special requirements

· Hole Copper: Minimum 18μm, optimized at 25μm

Automotive-Grade Quality Standards

Ultra-High Reliability Manufacturing

Your Engine control module pcb  must perform flawlessly for years without maintenance. Our automotive PCBs feature enhanced specifications designed for harsh environments:

· Copper Thickness: 2 OZ minimum for current carrying capacity

· Hole Copper: ≥25μm for robust connections

· Zero Trace Repair Policy: Automotive applications demand perfection

· Board Thickness: 1.6-2.0mm for mechanical stability

Comprehensive Quality Control

Our quality framework keeps up item abdicate ≥99.8% through thorough testing at each arrange. We execute three-tier quality control:

Incoming Quality Control (IQC): Provider administration and fabric assessment guarantee as it were premium materials enter production.

In-Process Quality Control (IPQC): To begin with article affirmation, handle inspecting, and unwavering quality testing capture issues some time recently they influence your boards.

Outgoing Quality Control (OQC): Last assessment, useful testing, and unwavering quality confirmation guarantee each board meets specifications.

Specialized Features for Engine Control Applications

High-Density Interconnect (HDI) Technology

Modern motor control modules pack mind blowing usefulness into compact spaces. Our HDI capabilities support:

· BGA Pads: Down to 0.2mm for advanced processors

· Dense Vias: Minimum 0.15mm for complex routing

· Fine Pitch Components: Supporting latest automotive semiconductors

· Impedance Matching: Critical for high-speed digital signals

Thermal Management Solutions

Engine compartments produce extraordinary warm. Our warm administration highlights include:

· Heavy Copper Construction: Enhanced heat dissipation

· Thermal Vias: Efficient heat transfer between layers

· High-Temperature Materials: Stable performance up to automotive standards

· Controlled Expansion: Minimizes stress from temperature cycling

Fast Delivery Without Compromising Quality

Your extend timelines matter. Our streamlined generation conveys quality sheets quickly:

· 4-Layer Boards: 3-4 days quick sample, 8-10 days small batch

· 6-Layer Boards: 5-6 days quick sample, 10-12 days small batch

· 8-Layer Boards: 6-8 days quick sample, 10-12 days small batch

· Complex Designs: Custom timeline based on specifications

We maintain 99% on-time delivery rate while never compromising quality standards.

Surface Finish Options for Automotive Applications

Different car situations require particular surface treatments:

ENIG (Electroless Nickel Inundation Gold): Great for fine-pitch components and cruel situations. Gives prevalent erosion resistance and level surfaces for exact component placement.

OSP (Natural Solderability Additive): Cost-effective arrangement for standard car applications with great fastening characteristics.

Immersion Silver: Exceptional electrical execution for high-frequency applications in progressed motor administration systems.

Complete PCBA Services

Beyond PCB fabricating, we offer total gathering administrations. Our PCBA capabilities incorporate component obtainment, SMT get together, and last testing. This coordinates approach guarantees compatibility and decreases your supply chain complexity.

Our assembly specifications support:

· Minimum Component Size: 0201 standard, 01005 special capability

· Maximum Component Height: 10mm standard, 13mm special capability

· Placement Precision: ≤0.15mm standard, ≤0.10mm special capability

Partner with Automotive PCB Experts

Choosing Akeson Circuit Co., LTD implies joining forces with pros who get it car gadgets interior and out. Our designing group works closely with you to optimize plans for manufacturability whereas keeping up execution requirements.

We serve major car producers and tier-one providers around the world. Our involvement ranges conventional motor control modules to progressed electric vehicle frameworks. This breadth guarantees we get it your special challenges and requirements.

Ready to discuss your Engine control module pcb  requirements? Our technical team stands ready to provide expert guidance and competitive solutions. Contact us at akesoncircuit@hotmail.com  to start your next automotive project with confidence. Let us demonstrate why leading automotive companies trust us for their most critical PCB applications.
