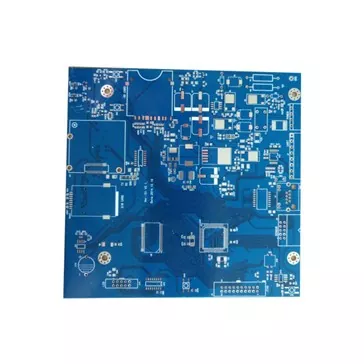

Medical Imaging/Diagnostic Devices PCB

High-Precision Medical Imaging/Diagnostic Devices PCB Solutions

When your medical equipment needs the ultimate in reliability and precision, choosing the right Medical Imaging/Diagnostic Devices pcb  gets to be basic to your victory. At Akeson Circuit Co., we get it that healthcare innovation requests zero compromise on quality. Your patients depend on precise diagnostics, and we're here to guarantee your PCB establishments provide that exactness each single time. Our specialized fabricating forms are outlined particularly for the thorough requests of therapeutic electronics.

Why Choose Our Medical Device PCBs?

Uncompromising Quality Standards

Medical hardware works in life-critical circumstances. Your symptomatic gadgets require PCBs that perform faultlessly beneath weight. We keep up a comprehensive quality control framework with a 99.8% item surrender rate and 99% on-time conveyance. Each single board passes 100% of our tests some time recently shipping to you.

Our quality control handle incorporates numerous checkpoints. From approaching fabric review (IQC) to last active quality control (OQC), we screen each step. Your restorative gadget PCBs experience to begin with article affirmation, in-process testing, and unwavering quality testing all through production.

Advanced Manufacturing Capabilities

We make PCBs from single-sided to 32-layer arrangements. Your complex restorative imaging frameworks frequently require high-density interconnect (HDI) arrangements, and we deliver:

· Minimum line width/spacing: 3/3 mil precision

· BGA pad capability: Down to 0.2mm for highly integrated medical chips

· Dense via technology: Minimum 0.15mm for complex interlayer connections

· Impedance control: Critical for high-frequency medical signal transmission

· Maximum copper thickness: Up to 6 OZ for power-hungry diagnostic equipment

Specialized Medical PCB Features

Your diagnostic equipment faces unique challenges. Our Medical Imaging/Diagnostic Devices pcb  solutions address these specific requirements:

High-Frequency Execution: Therapeutic imaging frameworks require amazing flag judgment. We give controlled impedance inside ±8% resilience for ideal flag transmission.

Thermal Administration: Demonstrative hardware produces noteworthy warm. Our thick copper alternatives (up to 6 OZ) and progressed warm plan guarantee dependable operation.

Miniaturization Bolster: Cutting edge restorative gadgets request compact arrangements. Our HDI innovation underpins 01005 chip components and 0.22mm least BGA diameter.

Comprehensive Production Process

Multi-Layer Board Manufacturing

Our modern multi-layer prepare guarantees your complex restorative PCBs meet correct specifications:

1. Incoming Quality Control: Each crude fabric meets medical-grade standards

2. Inner Layer Preparing: Exact circuit designing utilizing progressed lithography

3. AOI Assessment: Robotized optical review catches absconds early

4. Lamination: Controlled holding handle guarantees layer stability

5. Precision Penetrating: Precise gap arrangement for component mounting

6. Plating Operations: Dependable copper statement for electrical connections

7. Final Testing: Comprehensive electrical testing approves functionality

Double-Sided Board Efficiency

For simpler medical device applications, our streamlined double-sided process delivers:

· Faster turnaround: 2-3 days for quick samples

· Cost-effective solutions: Without compromising quality

· Reliable performance: Same rigorous testing standards

Technical Specifications for Medical Applications

Layer Configuration Options

 Critical Specifications

· Board thickness range: 0.3mm to 5.0mm

· Maximum panel size: 650mm × 750mm

· Minimum hole size: 0.1mm with ±0.05mm tolerance

· Aspect ratio: Up to 12:1 for complex designs

· Bow and twist: ≤0.75% for precise component mounting

Surface Treatment Options

Medical devices require long-term reliability. We offer various surface finishes:

· ENIG (Electroless Nickel Immersion Gold): Excellent for fine-pitch components

· OSP (Organic Solderability Preservative): Cost-effective for standard applications

· Immersion Silver: Superior electrical performance

· Hard Gold: For edge connectors and high-wear areas

Quality Assurance You Can Trust

Our commitment to quality extends beyond manufacturing. We maintain:

· Customer satisfaction rate: ≥98%

· Customer complaint rate: ≤0.5%

· Comprehensive traceability: Full documentation for regulatory compliance

· Reliability testing: Environmental stress testing validates long-term performance

Every product undergoes rigorous validation. We perform electrical testing, automated optical inspection, and functional verification before shipment.

Partner with Medical PCB Experts

Your restorative gadget victory depends on dependable PCB establishments. We combine progressed fabricating capabilities with strict quality control to convey the accuracy your demonstrative hardware requests. From model to mass generation, we bolster your whole item lifecycle.

Our experienced building group gets it restorative gadget directions and plan prerequisites. We work closely with you to optimize your PCB plan for fabricating whereas keeping up the most elevated quality standards.

Ready to discuss your Medical Imaging/Diagnostic Devices pcb  requirements? Contact our technical team at akesoncircuit@hotmail.com  to start your next project. We're here to help you bring life-saving diagnostic technology to market with confidence.
