Welcome to Akeson Circuit Co., LTD - your trusted accomplice for progressed circuit board fabricating. Our state-of-the-art office specializes in conveying high-quality  semiconductor packaging processes pcb  arrangements that meet the requesting prerequisites of advanced gadgets. Whether you require single-layer sheets or complex 32-layer plans, we combine accuracy designing with solid fabricating forms to bring your electronic advancements to life. Our mastery ranges over car, customer gadgets, mechanical control, and control supply applications.

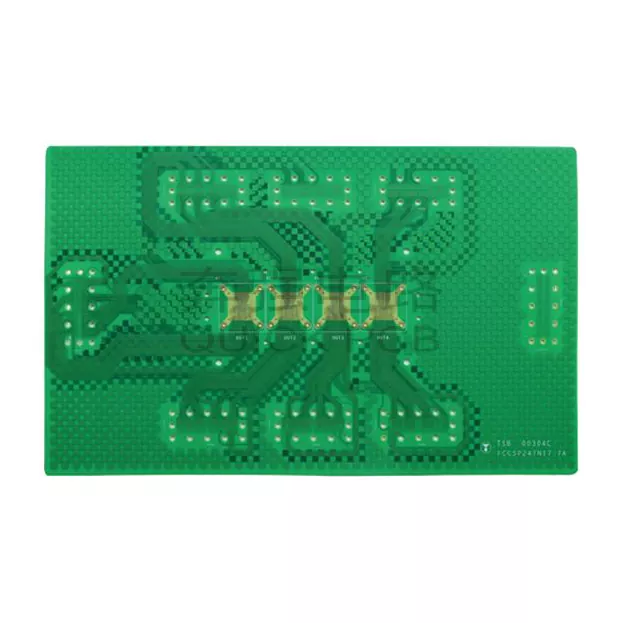

What Are Semiconductor Packaging Process PCBs?

Think of your electronic gadget as a modern astound. The item serves as the establishment that interfaces all pieces together. These specialized circuit sheets give the basic interconnects between semiconductor chips and the exterior world.

Our sheets handle everything from essential flag directing to complex control conveyance. They back different bundling sorts counting BGA, QFN, and progressed flip-chip advances. The fabricating handle requires extraordinary exactness to guarantee solid associations between infinitesimal components.

Our Manufacturing Capabilities

Multi-Layer Board Production

Our multi-layer fabricating takes after a comprehensive 25-step prepare. It begins with approaching fabric assessment and advances through internal layer handling, cover, and drilling.

Key steps include:

· Precision drilling with minimum 0.2mm holes

· Advanced PTH plating for reliable connections

· AOI inspection at critical stages

· Professional solder mask application

· Multiple surface treatment options

Double-Sided Board Manufacturing

For less difficult applications, our double-sided sheets offer amazing execution with speedier turnaround times. The streamlined 20-step prepare keeps up the same quality benchmarks whereas decreasing generation time.

Technical Specifications

Layer Configurations

· Single to 32 layers available

· Maximum panel size: 650mm × 750mm

· Board thickness range: 0.3mm to 5.0mm

· Copper thickness: Up to 6 OZ

Precision Features

· Minimum line width: 0.076mm (3 MIL)

· Minimum via size: 0.1mm (micro vias)

· Impedance tolerance: ±8% (special capability)

· Hole copper thickness: ≥25μm

Advanced Capabilities

· HDI technology: 1+N+1 and 2+N+2 configurations

· Aspect ratio: Up to 12:1

· BGA support: Down to 0.22mm diameter

· Component spacing: As tight as 0.14mm

PCBA Assembly Services

Beyond PCB manufacturing, we offer complete assembly solutions. Our PCBA capabilities include:

Component Placement Precision

· Minimum component size: 01005 chip (special capability)

· Maximum component height: 13mm

· Placement accuracy: ±0.025mm

· BGA pitch: Down to 0.38mm

Quality Control

· Solder paste thickness control: ±0.03mm

· Component migration precision: ≤0.10mm

· Minimum spacing: 0.25mm between components

Industry Applications

Automotive Electronics

Our automotive-grade semiconductor packaging processes pcb  solutions meet stringent reliability requirements. We manufacture boards for:

· Engine control units

· Safety systems

· Electric vehicle power management

· Advanced driver assistance systems

Consumer Electronics

From smartphones to smart home devices, our boards enable:

· High-density component integration

· Miniaturized form factors

· Enhanced signal integrity

· Cost-effective production

Industrial Control Systems

Robust designs for harsh environments including:

· Motor control boards

· Sensor interfaces

· Communication modules

· Power distribution systems

Power Supply Applications

Specialized solutions for:

· Energy storage systems

· Solar inverters

· LED drivers

· Battery management systems

Quality Assurance

We maintain strict quality standards throughout production:

Quality Targets

· Product yield: ≥99.8%

· On-time delivery: ≥99%

· Customer satisfaction: ≥98%

· Complaint rate: ≤0.5%

Testing Protocols

Every board undergoes comprehensive testing including:

· Electrical testing (ET)

· Automated optical inspection (AOI)

· Final quality control (FQC)

· Outgoing quality assurance (OQC)

Delivery Timeline

We understand time-to-market pressures. Our production schedules include:

Quick Samples

· Single/Double-sided: 1-3 days

· 4-layer boards: 3-4 days

· Complex multilayer: 5-10 days

Production Volumes

· Standard boards: 7-16 days

· Complex designs: 16-20+ days

· Rush orders: Contact for expedited service

Surface Treatment Options

Choose from multiple finishing options:

· HASL (Lead and lead-free)

· ENIG (Electroless Nickel Immersion Gold)

· OSP (Organic Solderability Preservative)

· Immersion Silver/Tin

· Hard Gold for edge connectors

Why Choose Akeson Circuit?

Our commitment to excellence extends beyond manufacturing. We provide:

· Technical consultation for design optimization

· DFM analysis to prevent production issues

· Flexible quantities from prototypes to mass production

· Comprehensive documentation for traceability

The semiconductor industry demands perfection. Our advanced semiconductor packaging processes pcb  manufacturing capabilities ensure your products meet the highest standards. From initial design consultation to final delivery, we're your partner in electronic innovation.

Ready to discuss your next project? Contact our technical team at akesoncircuit@hotmail.com  to explore how our expertise can bring your designs to life. Let's build the future of electronics together.
