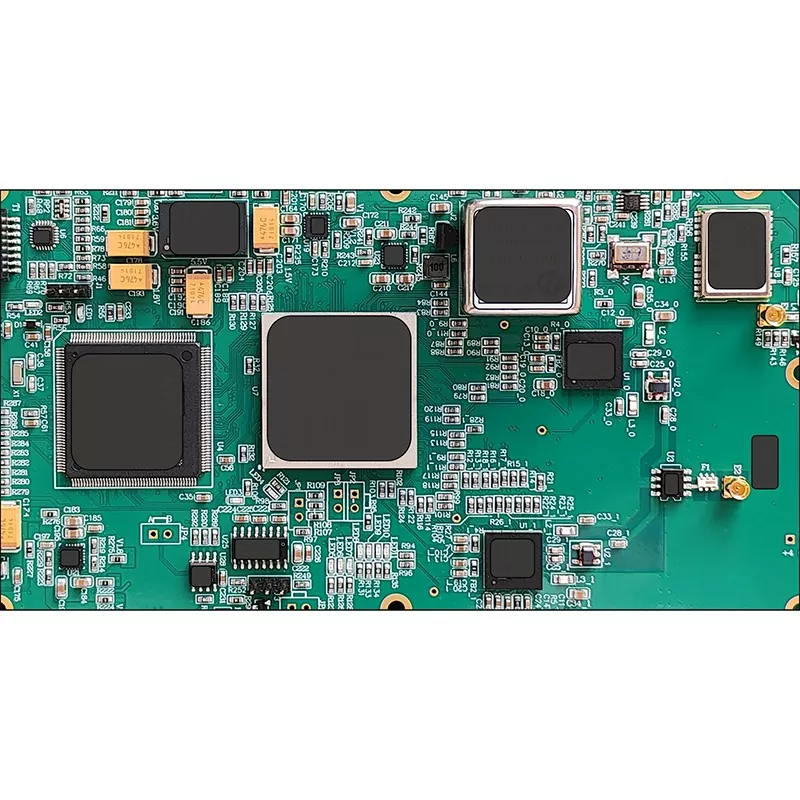

Servo motor systems require precise control, fast response, and stable operation under continuous working conditions. The PCB inside a servo drive or motor controller plays a critical role in power distribution, signal communication, and system reliability.

Shenzhen Aisen Electronics Co., Ltd. specializes in manufacturing custom Servo Motor PCBs designed for high-performance motion control applications. Our PCB solutions support complex circuit designs including motor drive circuits, encoder feedback circuits, power management modules, and industrial communication interfaces.

Unlike standard control boards, servo motor PCBs must handle high current loads, switching noise, thermal stress, and strict signal accuracy requirements. Aisen focuses on optimized PCB structures, suitable material selection, precise manufacturing processes, and comprehensive testing to ensure stable performance in demanding industrial environments.

From prototype development to mass production, we work closely with customers to provide reliable PCB manufacturing and PCBA assembly solutions for automation equipment manufacturers worldwide.

Why Choose Aisen Servo Motor PCBs

Designed for Industrial Motion Control Applications

Servo systems are widely used in applications where positioning accuracy and operational stability are critical. PCB performance directly affects motor response, communication reliability, and equipment lifespan.

Aisen Servo Motor PCBs are engineered for:

• High-current motor drive circuits
• Encoder and feedback signal processing
• Motion control modules
• Servo amplifier systems
• Industrial automation equipment
• Precision positioning applications

Our engineering team focuses on electrical performance, thermal management, EMI control, and manufacturing reliability during the PCB development process.

Advanced PCB Manufacturing Capabilities

Aisen provides flexible PCB manufacturing solutions for different servo motor applications, including simple control boards and complex multilayer designs.

Manufacturing Capabilities

These capabilities allow Aisen to manufacture servo motor boards with complex routing requirements, high-density components, and strict electrical performance requirements.

Key Features of Aisen Servo Motor PCB

1. High Current Capability

Servo drives often require stable power transmission during continuous operation. Excessive resistance or insufficient copper thickness may cause heat accumulation and affect system reliability.

Aisen supports heavy copper PCB manufacturing with copper thickness up to 6 oz, helping improve:

• Current carrying capacity
• Thermal performance
• Power efficiency
• Long-term reliability

Heavy copper designs are suitable for servo power modules, motor driver circuits, and industrial control applications.

2. Optimized Signal Integrity

Servo systems rely on accurate feedback signals from encoders and sensors. Signal interference or poor routing design may affect positioning accuracy.

Aisen provides PCB solutions with:

• Controlled impedance routing
• Optimized layer stack-up design
• Ground plane optimization
• EMI reduction design support
• High-density interconnect technology

These technologies help maintain stable communication between servo motors, controllers, and industrial networks.

3. Reliable Thermal Management

Continuous operation generates heat from power components and switching circuits. Effective thermal design is essential for maintaining PCB reliability.

Aisen supports thermal optimization through:

• Heavy copper layers
• Thermal vias
• Proper copper distribution
• Material selection guidance
• Customized PCB stack-up design

These solutions help reduce temperature rise and improve product service life.

4. Flexible PCB Material Options

Different servo applications require different PCB materials.

Aisen provides material options including:

• Standard FR-4 PCB for general industrial control
• High-TG PCB for high-temperature environments
• Heavy copper PCB for high-power applications
• Aluminum PCB for improved thermal dissipation
• High-frequency materials for signal-sensitive designs

Our engineering team can recommend suitable materials according to operating conditions, power requirements, and product lifetime expectations.

Typical Applications

Aisen Servo Motor PCBs are widely used in industries requiring precise motion control and reliable automation performance.

Industrial Automation

Servo PCBs are commonly used in:

• CNC machines
• Robotic arms
• Automated assembly lines
• Packaging machinery
• Factory automation systems

Robotics

Servo motor control boards support:

• Industrial robots
• AGV and AMR systems
• Robotic positioning equipment
• Collaborative robots

Precision Equipment

Applications include:

• Medical equipment
• Semiconductor manufacturing equipment
• Laser processing machines
• Testing instruments

Other Applications

• Elevator control systems
• Printing equipment
• Textile machinery
• Intelligent manufacturing systems

Servo Motor PCB Manufacturing Process

At Shenzhen Aisen Electronics Co., Ltd., every Servo Motor PCB is manufactured through a controlled production process to ensure electrical stability, dimensional accuracy, and consistent quality.

Servo control boards often integrate power circuits, communication interfaces, and sensitive feedback signals. Therefore, each manufacturing stage requires strict process control to prevent issues such as signal interference, poor solderability, and electrical failure.

1. Engineering Review and DFM Analysis

Before production starts, our engineering team reviews customer design files, including Gerber files, PCB stack-up, drill files, and BOM information.

The DFM (Design for Manufacturing) review focuses on:

• Circuit layout optimization
• Signal integrity improvement
• Thermal management
• Manufacturing feasibility
• Cost optimization
• Production reliability

This process helps identify potential manufacturing risks before mass production.

2. Inner Layer Circuit Fabrication

For multilayer Servo Motor PCBs, inner layers are produced through precision imaging and etching processes.

Main steps include:

• Material cutting
• Inner layer imaging
• Circuit etching
• AOI inspection
• Layer alignment

Advanced inspection equipment ensures circuit patterns meet design requirements before lamination.

3. Lamination and Drilling

Multiple PCB layers are bonded together under controlled temperature and pressure.

After lamination:

• CNC drilling creates through holes and vias
• Hole walls are prepared for copper plating
• Precision control ensures reliable layer connection

For high-density servo control boards, advanced drilling technology helps achieve smaller vias and more compact circuit designs.

4. Copper Plating and Circuit Formation

Copper plating builds reliable electrical connections between PCB layers.

The process includes:

• Electroless copper deposition
• Electrolytic copper plating
• Outer layer circuit formation
• Pattern plating

Proper copper thickness control is especially important for servo applications requiring high current transmission.

5. Solder Mask and Surface Finishing

The solder mask protects PCB circuits from oxidation and prevents solder bridging during assembly.

Aisen provides various surface finishes:

• ENIG (Electroless Nickel Immersion Gold)
• HASL
• OSP
• Immersion Silver
• Immersion Tin
• Hard Gold

The suitable surface finish depends on application requirements, component type, storage conditions, and production volume.

6. Electrical Testing and Final Inspection

Before shipment, each PCB undergoes strict inspection procedures.

Testing includes:

• Automated Optical Inspection (AOI)
• Flying Probe Testing
• Electrical Continuity Testing
• Dimensional Inspection
• Final Quality Inspection

These procedures ensure every Servo Motor PCB meets customer specifications before delivery.

Quality Control for Servo Motor PCB Manufacturing

Servo motor applications usually operate in demanding industrial environments where PCB reliability directly affects equipment performance.

Aisen implements quality control throughout the entire manufacturing process, from incoming materials to final shipment.

Quality Control Process

Incoming Quality Control (IQC)

Raw materials are inspected before production, including:

• Copper clad laminates
• Prepreg materials
• Copper foil
• Solder mask materials

Material quality directly affects PCB performance and service life.

Process Quality Control (IPQC)

During manufacturing, production parameters are monitored to ensure consistency.

Key checkpoints include:

• Line width and spacing accuracy
• Copper thickness
• Layer alignment
• Hole quality
• Surface finish quality

Final Quality Control (FQC)

Before shipment, finished boards are inspected for:

• Appearance quality
• Electrical performance
• Mechanical dimensions
• Packaging requirements

Aisen focuses on stable production quality to support both prototype development and high-volume manufacturing.

PCB Assembly Services for Servo Control Boards

Besides PCB fabrication, Shenzhen Aisen Electronics Co., Ltd. provides complete PCB assembly services to simplify the supply chain for customers.

Our one-stop PCBA services include:

SMT Assembly

Supporting:

• High-density component placement
• Fine-pitch components
• BGA assembly
• Small package components

Through-Hole Assembly

Suitable for:

• Power components
• Connectors
• Industrial-grade components
• Mechanical reinforcement parts

Turnkey PCBA Solutions

Aisen can provide:

• Component sourcing
• PCB fabrication
• SMT assembly
• Functional testing
• Final inspection

This integrated manufacturing approach helps customers reduce supplier management costs and shorten product development cycles.

Custom Servo Motor PCB Development Support

Every servo system has different electrical and mechanical requirements. Aisen works with customers to develop PCB solutions based on actual application conditions.

Our engineering support includes:

PCB Stack-Up Design

Selecting suitable layer structures according to:

• Signal requirements
• Power distribution
• Thermal performance
• Cost targets

Power Circuit Optimization

For high-current applications, engineers evaluate:

• Copper thickness
• Trace width
• Heat dissipation
• Current capacity

EMI and Signal Optimization

For precision motion systems, we support:

• Noise reduction design
• Grounding optimization
• Signal routing improvement
• Impedance control

This engineering approach helps customers achieve better product reliability and manufacturing efficiency.

Why Global Customers Choose Shenzhen Aisen Electronics Co., Ltd.

Choosing the right PCB supplier is critical for servo motor manufacturers. A reliable partner should provide not only manufacturing capacity but also engineering support and consistent quality.

Customers choose Aisen because we provide:

Professional PCB Manufacturing Experience

We understand the requirements of industrial electronics and provide PCB solutions for complex control applications.

Flexible Production Capability

Aisen supports:

• Prototype orders
• Small batch production
• Medium-volume manufacturing
• Large-scale production

Engineering Collaboration

Our team works with customers during product development to improve PCB manufacturability and reduce production risks.

Quality-Focused Manufacturing

From material selection to final testing, every production stage follows strict quality procedures.

Frequently Asked Questions About Servo Motor PCB

1. What is a Servo Motor PCB?

A Servo Motor PCB is a circuit board designed for servo control systems. It manages power distribution, motor drive signals, communication interfaces, and feedback signals to ensure accurate motor operation.

2. What PCB type is commonly used for servo motor applications?

Servo systems commonly use multilayer PCBs, heavy copper PCBs, and HDI PCBs depending on power requirements, circuit complexity, and signal performance requirements.

3. Can Aisen manufacture custom Servo Motor PCBs?

Yes. Shenzhen Aisen Electronics Co., Ltd. provides customized PCB manufacturing based on customer specifications, including layer count, materials, copper thickness, surface finish, and assembly requirements.

4. Do you provide PCB assembly services?

Yes. Aisen provides complete PCBA solutions including component sourcing, SMT assembly, through-hole assembly, testing, and final inspection.

5. What files are required for Servo Motor PCB quotation?

Customers usually need to provide:

• Gerber files
• PCB specifications
• BOM file (for PCBA)
• Assembly drawings
• Technical requirements

Our engineers can review the files and provide manufacturing recommendations.

6. How long does Servo Motor PCB production take?

Lead time depends on PCB complexity, quantity, and testing requirements. Prototype production can be completed quickly, while mass production schedules are arranged according to project requirements.

7. Can you produce heavy copper Servo Motor PCBs?

Yes. Aisen supports heavy copper PCB manufacturing up to 6 oz for applications requiring higher current capacity and improved thermal performance.

8. Do you support OEM and ODM projects?

Yes. We work with global customers on customized PCB and PCBA projects, providing engineering support from prototype development to production.

Request a Servo Motor PCB Quote from Aisen

Shenzhen Aisen Electronics Co., Ltd. provides reliableServo Motor PCB manufacturing and PCBA solutionsfor industrial automation, robotics, and precision motion control applications.

Whether you need a prototype PCB, customized servo control board, or long-term production partner, our engineering team can help optimize your design and manufacturing process.

Send us your Gerber files, BOM, or technical requirements to receive a professional evaluation and quotation.

Contact Aisen today for your Servo Motor PCB project.
