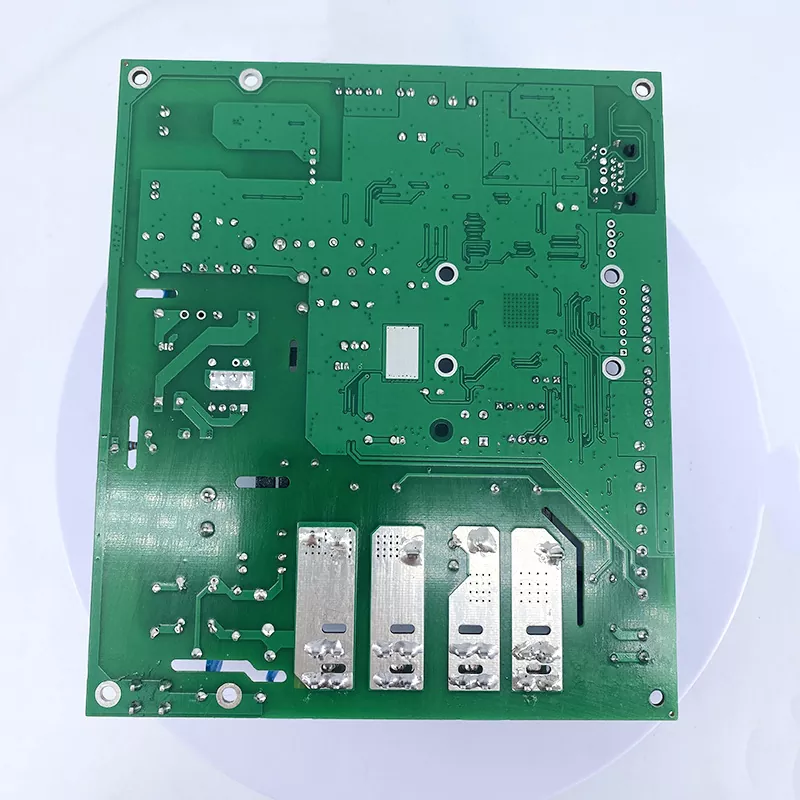

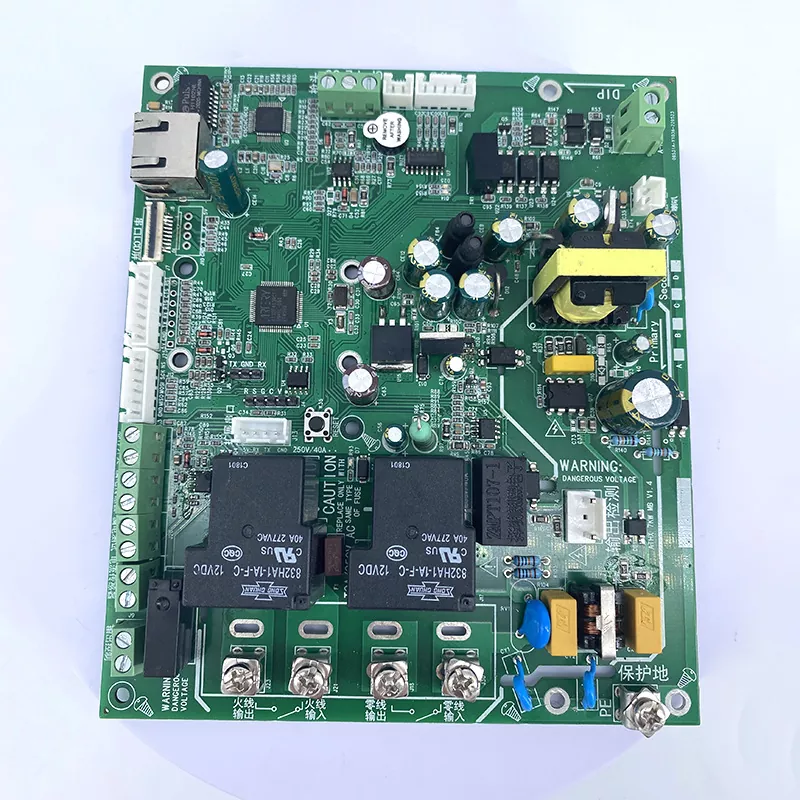

Battery Charge Control PCB

Battery Charge Control PCB is the core circuit platform that manages power input, charging current, voltage regulation and battery protection functions in electronic devices. Aisen Electronics Co., Ltd. manufactures customized battery charging control boards for applications including energy storage systems, portable electronics, automotive electronics and industrial equipment.

Unlike standard control boards, battery charging PCBs require precise power routing, stable thermal performance and strict electrical testing because any abnormal voltage or current condition may affect battery safety and operating life. Our manufacturing process focuses on achieving consistent electrical performance for both prototype development and volume production.

How Battery Charge Control PCB Works

A battery charge control PCB works as the connection point between the power source, charging controller, battery pack and protection components.

During charging operation, the PCB receives input power from an adapter or power supply. The charging IC controls voltage and current according to battery status, while MOSFETs and protection circuits regulate power flow and prevent issues such as overcharging, overcurrent and short circuits.

For lithium battery applications, the PCB layout design is especially important. High-current traces need sufficient copper thickness, thermal management and optimized routing to reduce power loss and heat accumulation. Signal circuits for battery monitoring also require controlled impedance and noise reduction to maintain measurement accuracy.

Manufacturing Capabilities for Battery Charging Control Boards

Aisen Electronics produces battery charge control PCBs with configurations from simple double-sided designs to complex multilayer structures.

Our manufacturing capability includes:

• Layer count: 1-32 layers
• Board thickness: 0.3mm-5.0mm
• Copper thickness: up to 6oz for high-current designs
• Minimum line width and spacing: 3mil
• Controlled impedance tolerance: ±10%
• Maximum panel size: 650mm × 750mm

For battery charging applications, copper thickness and thermal design directly influence charging efficiency. Heavy copper PCB technology can support higher current transmission while reducing temperature rise in power sections.

Multilayer PCB structures allow engineers to separate power layers, ground planes and signal routing, improving electromagnetic compatibility and reducing interference between charging control circuits.

Key PCB Design Considerations for Battery Charging Applications

High Current Circuit Design

Battery charging systems often handle continuous current during charging cycles. The PCB must maintain stable current transmission without excessive heat generation.

Aisen Electronics optimizes power trace width, copper thickness and via structures according to actual current requirements. For high-power charging applications, thicker copper layers and reinforced thermal paths help improve long-term reliability.

Thermal Management

Charging components such as MOSFETs, charging ICs and power regulators generate heat during operation.

Proper PCB design helps transfer heat away from sensitive components through copper areas, thermal vias and optimized component placement. This is particularly important for compact battery-powered devices where airflow is limited.

Protection Circuit Integration

Battery charge control boards commonly integrate protection functions including:

• Over-voltage protection
• Over-current protection
• Short-circuit protection
• Temperature monitoring

The PCB layout must ensure protection signals respond quickly while avoiding interference from high-current paths.

Applications of Battery Charge Control PCB

Energy Storage Systems

Battery charging control PCBs used in energy storage equipment require stable operation under continuous charging and discharging cycles. Heavy copper designs and reliable thermal structures help maintain performance in long-duration operation.

Automotive Electronics

Electric vehicles and automotive battery systems require charging control boards with high reliability and vibration resistance. PCB designs focus on current capacity, signal accuracy and long-term durability.

Portable Electronic Devices

Portable products such as power stations, smart devices and battery-powered equipment require compact charging circuits. HDI PCB technology enables smaller layouts while maintaining electrical performance.

Industrial Equipment

Industrial battery systems require consistent charging management under demanding environments. Controlled impedance design and strict inspection processes help ensure stable operation.

PCB Assembly and Testing Services

Aisen Electronics provides complete PCBA solutions from PCB fabrication to component assembly.

Our services include component sourcing, SMT assembly, through-hole processing and functional testing.

Before shipment, battery charge control PCBs undergo electrical inspection, AOI inspection and final quality verification to confirm circuit performance and assembly reliability.

Testing procedures can be customized according to customer requirements, including:

• Electrical continuity testing
• Flying probe testing
• Functional testing
• Appearance inspection
• Reliability verification

Surface Finishing Options for Charging Control PCB

Different battery charging applications require different surface treatments.

ENIG finishing is suitable for fine-pitch components and high-density PCB designs due to its flat surface characteristics. OSP provides an economical option for standard applications, while hard gold finishing offers improved durability for connector areas requiring frequent contact.

Why Choose Aisen Electronics for Battery Charge Control PCB Manufacturing

Battery charging PCB production requires more than standard circuit fabrication. It requires understanding of power management, thermal control and protection circuit requirements.

Aisen Electronics Co., Ltd. combines PCB manufacturing experience with engineering support to help customers optimize board structure, material selection and production processes.

From prototype validation to mass production, we provide customized solutions based on actual electrical requirements instead of applying the same PCB structure to every project.

Frequently Asked Questions About Battery Charge Control PCB

What is the difference between a battery charge control PCB and a standard PCB?

A battery charge control PCB handles power conversion, charging regulation and battery protection functions. Compared with standard control boards, it requires higher current capability, better thermal management and stricter electrical performance control.

What copper thickness is recommended for high-current charging PCB?

The required copper thickness depends on charging current, trace width and thermal conditions. Heavy copper PCB designs are commonly used for higher power applications to reduce resistance and heat generation.

Can you manufacture customized battery charging PCBs?

Yes. Aisen Electronics supports customized PCB designs based on customer requirements, including layer structure, material selection, copper thickness and assembly requirements.

Do you provide PCB assembly services?

Yes. We provide complete PCBA services including component sourcing, SMT assembly, inspection and testing.

What testing is performed before shipment?

Each PCB can be tested through electrical inspection, AOI inspection and customer-specific functional testing requirements before delivery.

Contact Aisen Electronics

If you need customized Battery Charge Control PCB solutions for your charging equipment or battery management system, contact Aisen Electronics Co., Ltd. for engineering support and manufacturing evaluation.
