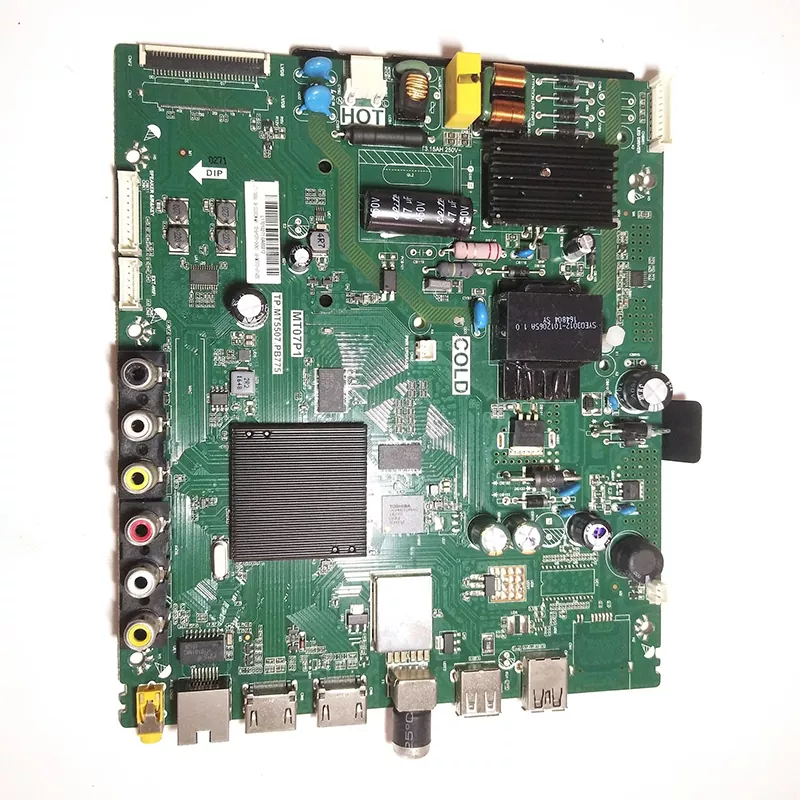

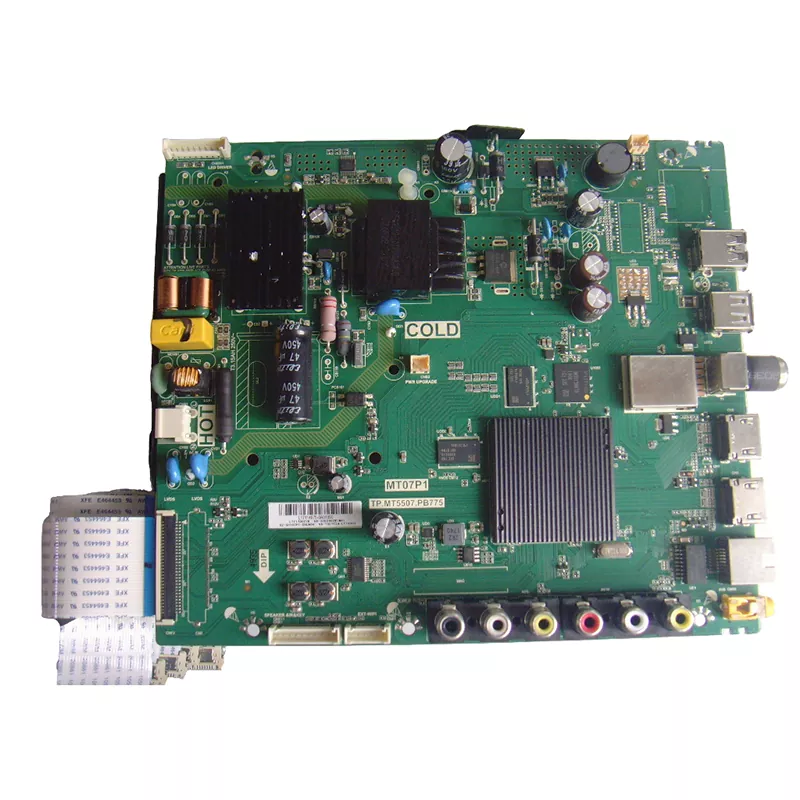

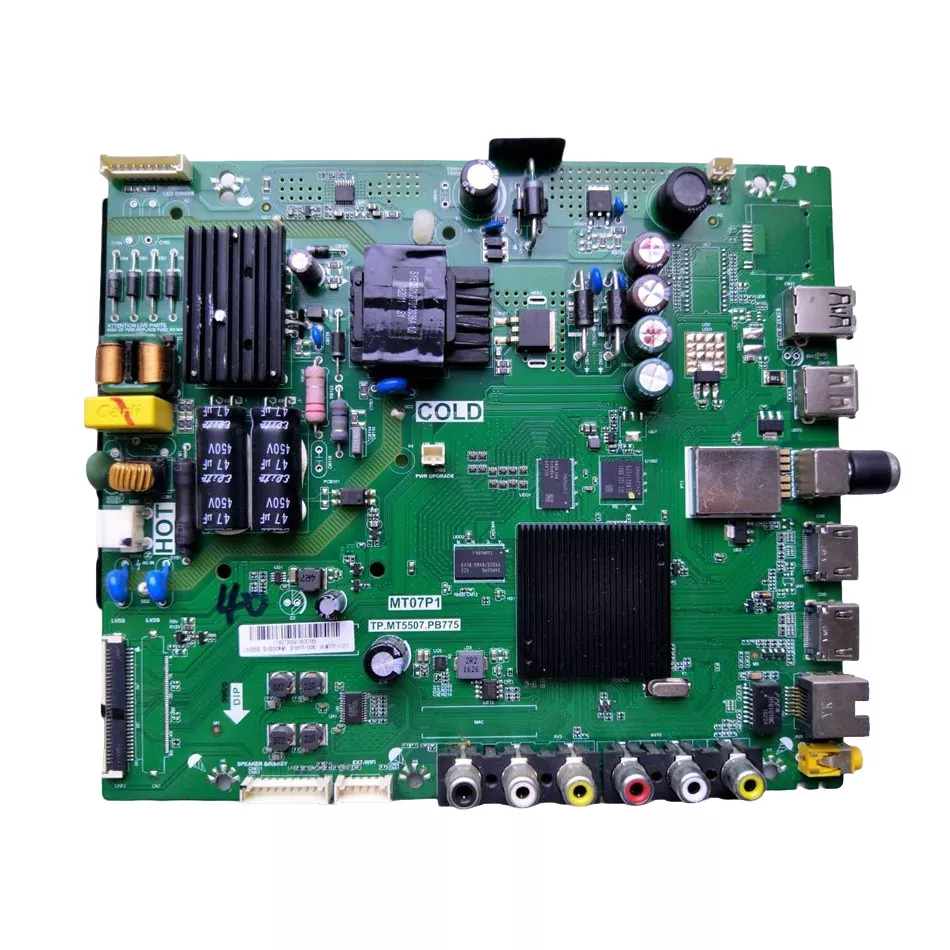

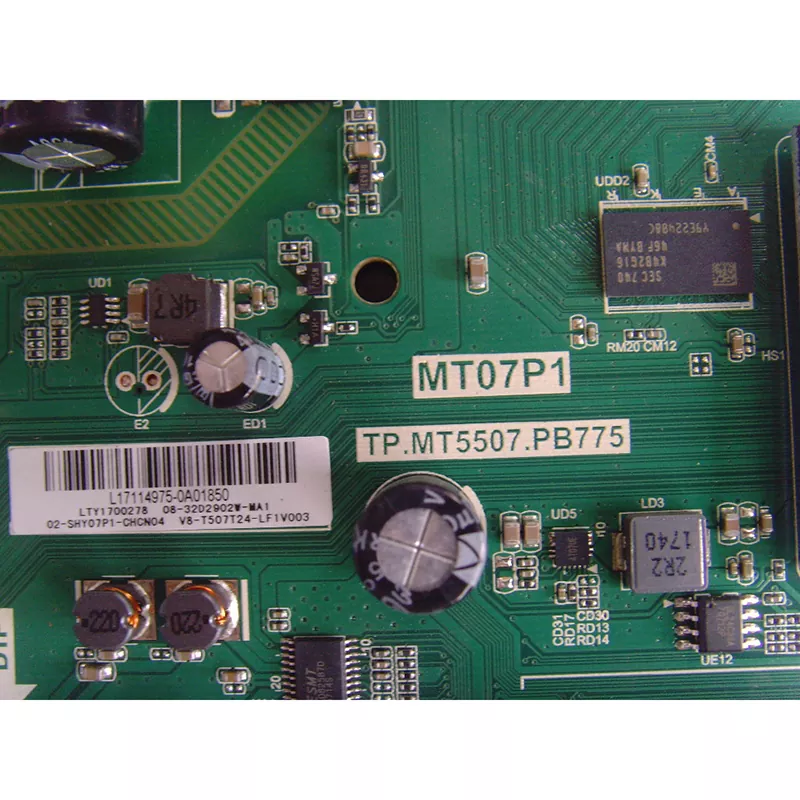

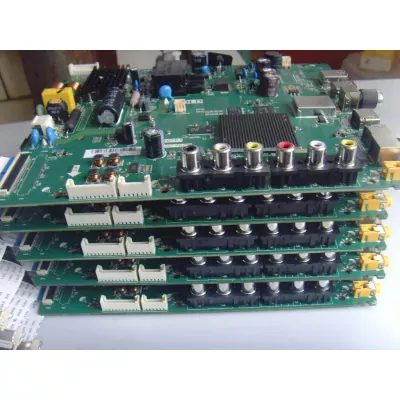

TV PCB Board

Premium TV PCB Boards for Enhanced Performance

When you're looking for reliable circuits in modern television manufacturing, choosing the right TV pcb board  gets to be significant for your product's victory. Our progressed printed circuit sheets provide remarkable execution that changes your tv plans into market-leading items. With over a long time of skill at Akeson Circuit Co., LTD, we get it precisely what your TV fabricating needs request. Whether you're creating keen TVs, OLED shows, or conventional Driven tvs, our specialized circuits give the establishment for extraordinary visual performance.

Why Choose Our Television Circuit Boards?

Our tv circuits stand out in the competitive hardware showcase. We fabricate sheets that handle high-frequency signals with exactness. Your shows will appear fresh, clear pictures without impedances or flag corruption. Our fabricating handle guarantees each board meets strict quality guidelines some time recently coming to your generation line.

Advanced Manufacturing Process

We take after a comprehensive 25-step fabricating handle for multilayer sheets. This point by point approach ensures reliable quality over all our items. Here's what makes our handle exceptional:

Quality begins with approaching assessment. Each crude fabric experiences intensive testing some time recently entering generation. Our cutting prepare guarantees exact board measurements that fit your determinations perfectly.

Inner layer handling makes solid associations. We utilize progressed carving methods taken after by computerized optical review. This combination catches potential issues early in production.

Lamination and boring make solid, tough sheets. Our PTH prepare sets up strong electrical associations between layers. Board plating includes the copper thickness your circuits require for ideal performance.

Outer layer preparing characterizes your circuit designs. Our design plating guarantees appropriate conductor thickness. Carving evacuates undesirable copper with exactness accuracy.

Solder cover application secures your circuits. We offer different colors counting green, white, dark, yellow, ruddy, blue, purple, and brown. Character printing includes clear component identification.

Surface treatment choices incorporate lead-free HASL, ENIG, OSP, and gold finger wraps up. Each treatment gives particular benefits for your application requirements.

Final forming and electrical testing confirm each association works accurately. Our quality control group performs comprehensive reviews some time recently bundling and shipping.

Technical Specifications That Deliver Results

Our tv circuit fabricating capabilities surpass industry guidelines. We deliver sheets from 1 to 32 layers with most extreme board sizes coming to 650mm × 750mm. Board thickness ranges from 0.3mm for double-sided sheets to 5.0mm for complex multilayer designs.

Precision penetrating capabilities incorporate mechanical vias down to 0.2mm and miniaturized scale vias as little as 0.1mm. Most extreme copper thickness comes to 6 ounces for high-current applications. Least line width and dividing accomplish 0.076mm precision.

Impedance control maintains signal integrity with tolerances of ±10% standard or ±8% for special requirements. Hole copper thickness meets 18μm minimum with 25μm capability for enhanced reliability.

HDI innovation underpins 1+N+1 standard arrangements and 2+N+2 uncommon plans. Most extreme viewpoint proportions reach 10:1 standard or 12:1 for uncommon applications. Patch cover dams keep up 0.075mm accuracy with 0.05mm clearances.

Fast Delivery for Your Production Schedules

Your time-to-market matters. Our streamlined TV pcb board  delivers samples quickly and maintains consistent lead times for production quantities. Double-sided boards ship in 2-3 days for samples and 5-8 days for small batches. Four-layer boards complete in 3-4 days for samples with 8-10 days for production runs.

Six-layer sheets require 5-6 days for tests and 10-12 days for clumps. Eight-layer complexity expands to 6-8 days for tests with 10-12 days for generation. Ten-layer sheets require 8-10 days for tests and 12-14 days for bigger quantities.

Complex plans get uncommon consideration. Sheets with 14 or more layers require custom planning based on your particular necessities. We communicate reasonable timelines forthright so you can arrange accordingly.

Quality Assurance You Can Trust

Our quality targets set tall benchmarks for each arrange. We keep up item yields over 99.8% with on-time conveyance rates surpassing 99%. Client complaint rates remain underneath 0.5% whereas fulfillment scores reach 99% consistently.

Our quality control framework covers each generation arrange. Approaching quality control oversees provider connections and assesses all materials. In-process quality control affirms to begin with articles and performs testing assessments all through manufacturing.

Outgoing quality control performs last appearance reviews and utilitarian testing. Quality affirmation designing builds up measures, calibrates gear, and gives client benefit support.

Every board passes 100% of all tests before shipping. This commitment ensures you receive circuits that perform reliably in your television products.

Specialized TV Applications

Television fabricating requests circuits that handle different flag sorts successfully. Our sheets back video preparing, sound intensification, control administration, and shrewd TV usefulness. High-density interconnect innovation obliges miniaturized components whereas keeping up flag integrity.

We remain current with industry patterns counting 4K handling, HDR bolster, and remote network necessities. Our designing group makes a difference optimize your plans for way better execution and fetched effectiveness.

Partner With Electronics Manufacturing Experts

Choosing Akeson Circuit Co., LTD implies collaborating with hardware fabricating pros who get it your challenges. We give specialized bolster all through your plan prepare and fabricating lifecycle. Our group answers questions rapidly and offers arrangements that move forward your products.

Ready to enhance your television designs? Contact our engineering team at akesoncircuit@hotmail.com  to discuss your specific requirements. We'll help you select the right TV pcb board  specifications for your next project. Your success in the competitive television market starts with reliable, high-performance circuits that exceed customer expectations.
