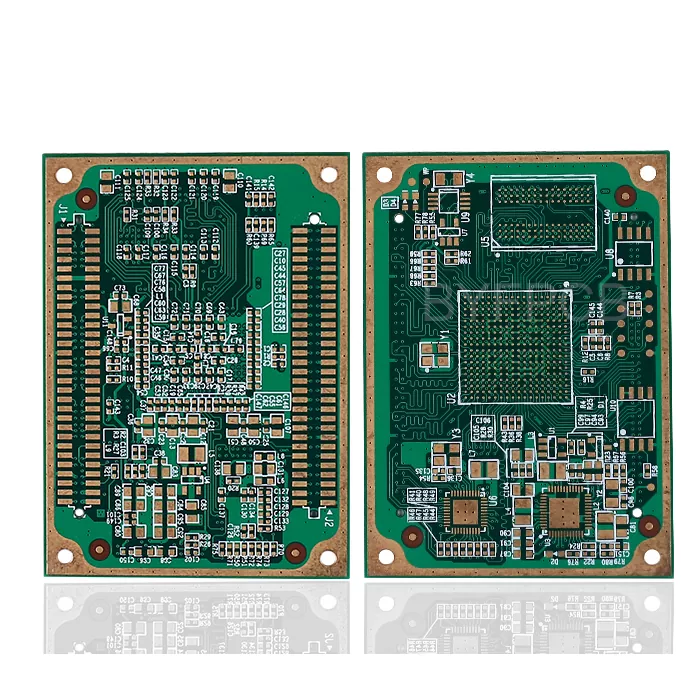

Ultrasound Equipment PCB

Ultrasound Equipment PCB - Professional Medical Device Circuit Boards

When it comes to medical imaging devices, the circuit board forms the technological backbone of every system. Our ultrasound equipment PCB  arrangements provide the exactness and unwavering quality that present day symptomatic gear requests. With over a decade of encounter fabricating medical-grade circuit sheets, we get it the basic part that high-quality PCBs play in persistent care and demonstrative exactness. Each item we create experiences thorough testing to guarantee it meets the exacting prerequisites of restorative gadget applications.

Why Choose Our Medical Grade PCBs?

Precision Manufacturing for Critical Applications

Your ultrasound framework requires circuits that can handle complex flag handling without obstructions. Our fabricating prepare incorporates 25 quality control checkpoints for multilayer sheets and 20 checkpoints for double-sided sheets. This guarantees each board meets therapeutic gadget standards.

We maintain strict tolerances across all specifications:

· Minimum line width: 0.076mm/3MIL

· Impedance tolerance: ±8% (special capability)

· Copper thickness: Up to 6 OZ for power requirements

· Board thickness range: 0.3mm to 5.0mm

Advanced Technical Capabilities

Our office handles complex multilayer plans up to 32 layers. This capability is significant for cutting edge ultrasound frameworks that coordinated numerous capacities into compact units. We bolster HDI innovation with microvias as little as 0.1mm, empowering high-density component placement.

Key technical specifications include:

· Maximum panel size: 650mm × 750mm

· Minimum via size: 0.1mm/4MIL (laser drilling)

· BGA pad support: Down to 0.2mm

· Hole copper thickness: ≥25um for reliability

Quality Standards That Matter

Medical Device Compliance

Every ultrasound equipment PCB  we manufacture follows strict quality protocols. Our quality objectives demonstrate our commitment:

· Product yield ≥ 99.8%

· On-time delivery rate ≥ 99%

· Customer complaint rate ≤ 0.5%

· Customer satisfaction ≥ 98%

We accomplish these measures through comprehensive quality control at each organize. Our IQC group oversees provider quality. IPQC performs to begin with article affirmation and in-process inspecting. OQC conducts last appearance assessment and useful testing.

Rigorous Testing Procedures

Before any board ships, it must pass 100% of our quality tests. This incorporates electrical testing, AOI assessment, and unwavering quality testing. For therapeutic applications, we get it that disappointment is not an option.

Our testing includes:

· Automated optical inspection at multiple stages

· Electrical testing with precise measurements

· Thermal cycling for reliability verification

· Impedance testing for signal integrity

Surface Treatment Options for Medical Devices

Different ultrasound applications require specific surface treatments. We offer comprehensive options:

Standard Treatments:

· ENIG (Electroless Nickel Immersion Gold) for excellent solderability

· OSP (Organic Solderability Preservative) for cost-effective solutions

· Immersion Silver for high-frequency applications

· Lead-free HASL for environmental compliance

Specialized Options:

· Hard Gold for contact applications

· Immersion Tin for specific component requirements

· Carbon treatment for specialized connections

Flexible Production Capabilities

Quick Turnaround Options

Medical gadget advancement regularly requires fast prototyping. Our generation capabilities bolster different timeline needs:

Sample Production:

· 4-layer boards: 3-4 days

· 6-layer boards: 5-6 days

· 8-layer boards: 6-8 days

· Complex multilayer: 8-10 days

Production Volumes:

· Small batch: 8-14 days depending on complexity

· Mass production: 10-20 days with full testing

PCBA Integration Services

Beyond PCB fabricating, we give total PCBA administrations. This incorporates component acquirement, SMT get together, and box construct gathering. Our PCBA capabilities bolster components from 01005 chip measure up to 45mm greatest component size.

Assembly Specifications:

· Minimum pitch: 0.38mm

· Placement precision: ±0.10mm

· Solder paste thickness control: ±0.03mm

· Maximum SMT component height: 13mm

Getting Started with Your Project

When creating your item, consider these plan factors:

Signal Keenness: High-frequency ultrasound signals require cautious impedance control and negligible crosstalk. Our controlled impedance capabilities guarantee flag quality.

Power Dissemination: Ultrasound transducers require clean, steady control. Our thick copper alternatives and multilayer capabilities bolster strong control conveyance networks.

Component Thickness: Present day ultrasound frameworks pack more usefulness into littler spaces. Our HDI capabilities back high-density plans without compromising reliability.

Environmental Contemplations: Therapeutic gear works in changed conditions. Our fabric determination and testing guarantee dependable operation over temperature ranges.

Contact Us for Your Medical PCB Needs

Ready to discuss your ultrasound equipment PCB  requirements? Our engineering team brings deep experience in medical device applications. We work closely with you from initial design review through production to ensure your boards meet all specifications.

Whether you need prototype quantities for development or production volumes for market launch, we have the capabilities to support your project. Our quality systems and medical device experience ensure your product meets the highest standards for patient safety and diagnostic accuracy.

Contact our team today at akesoncircuit@hotmail.com  to discuss your specific requirements. We look forward to supporting your medical device development with reliable, high-quality circuit board solutions.
