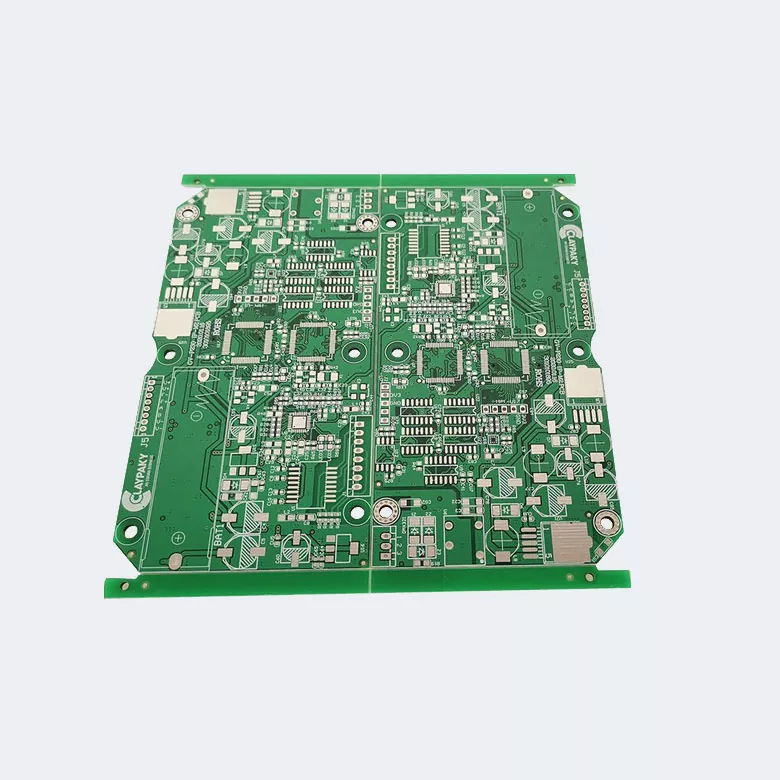

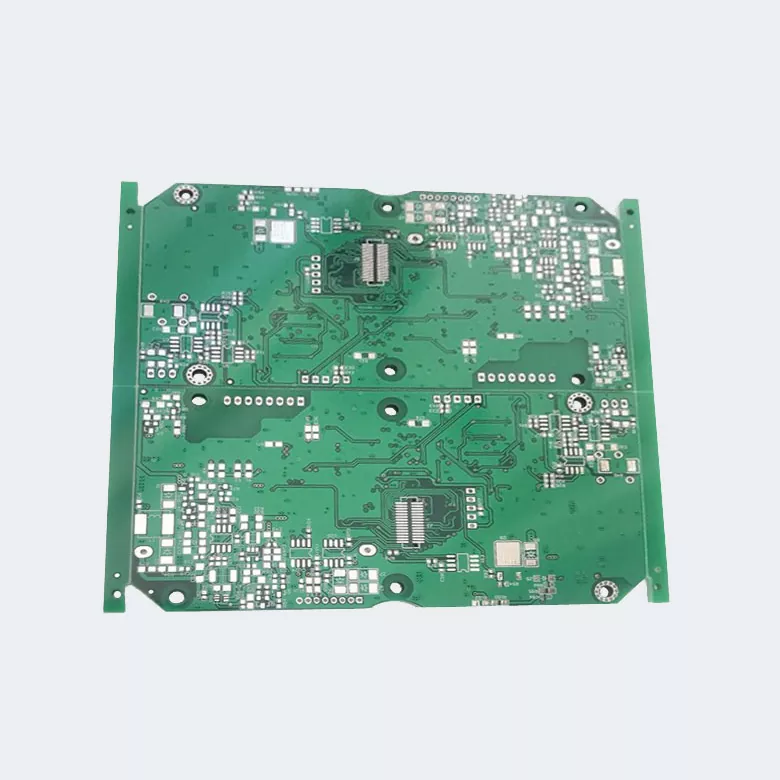

Auto Driver RADAR System PCB - Professional Manufacturing Solutions

Advanced car innovation requests precision-engineered circuit sheets that can withstand unforgiving conditions whereas keeping up remarkable execution. When you need an Auto driver RADAR system pcb , choosing the right producer makes all the distinction. At Akeson Circuit Co., LTD, we specialize in making high-reliability car PCBs that meet rigid industry measures. Our item arrangements provide the exactness and toughness required for cutting edge vehicle security systems.

Advanced Manufacturing Capabilities for Automotive Applications

Our state-of-the-art office produces circuit sheets with uncompromising quality benchmarks. We get it that car radar frameworks require remarkable exactness and unwavering quality. Your extend benefits from our comprehensive fabricating capabilities planned particularly for requesting car applications.

Multi-Layer Board Manufacturing Excellence

Our multi-layer board generation handle guarantees predominant execution for complex car gadgets. Each board experiences thorough quality control through 25 specialized stages. From starting fabric review to last shipping, we keep up strict oversight of each fabricating step.

The prepare incorporates progressed AOI assessment, exactness boring, and specialized surface medications. Our brown oxidation and cover strategies make solid interlayer bonds fundamental for car unwavering quality. Board plating and design plating stages guarantee ideal conductivity all through your circuit design.

Double-Sided Board Production

For less complex car applications, our double-sided board fabricating offers cost-effective arrangements. The streamlined 20-stage handle keeps up the same quality measures whereas decreasing generation time. Each board gets comprehensive electrical testing and quality confirmation some time recently packaging.

PCBA Assembly Capabilities That Meet Your Needs

Your car radar ventures require exact component arrangement and dependable get together. Our PCBA capabilities back components from 01005 chip sizes up to 45mm bundles. We keep up situating exactness inside ±0.025mm for basic car applications.

Precision Assembly Features

· Maximum board size: 810×490mm for large automotive modules

· Minimum pitch: 0.38mm for high-density designs

· BGA support down to 0.22mm diameter

· Component height accommodation up to 13mm

· Solder paste thickness control: ±0.03mm

These specifications ensure your Auto driver RADAR system pcb  meets exact automotive requirements. Our assembly process accommodates both standard and specialized automotive components with exceptional precision.

Technical Specifications for Automotive Excellence

Our fabricating capabilities address the one of a kind necessities of car radar frameworks. We deliver sheets from single-layer up to 32-layer setups. Greatest board estimate comes to 650mm×750mm, obliging expansive car electronic modules.

Critical Performance Parameters

Board thickness ranges from 0.3mm for double-sided boards to 5.0mm for complex multi-layer designs. We achieve minimum mechanical drill hole sizes of 0.2mm with ±0.05mm tolerance. Micro via capabilities extend down to 0.1mm for high-density interconnect requirements.

Copper thickness reaches 6 OZ for high-current automotive applications. Our minimum line width and spacing capabilities of 0.076mm support dense circuit patterns. Impedance control maintains ±8% tolerance for precise signal transmission.

Surface Treatment Options

We offer comprehensive surface treatment choices counting HASL, ENIG, OSP, and specialized car wraps up. Patch veil colors incorporate standard green, white, dark, and claim to fame car colors. Both reflexive and matte wraps up suit distinctive car plan requirements.

Delivery Excellence for Your Projects

Our streamlined generation plans guarantee convenient conveyance for your car ventures. Fast tests for 4-layer sheets total in 3-4 days. Little group generation requires 8-10 days, whereas mass generation conveys inside 10-12 days.

Complex multi-layer sheets require extra time to guarantee quality. Our experienced group gives precise conveyance gauges based on your particular necessities. We keep up over 99% on-time conveyance rates for client satisfaction.

Quality Assurance That Exceeds Expectations

Every item experiences comprehensive testing some time recently shipment. Our quality control framework keeps up over 99.8% item abdicate through thorough review conventions. Client fulfillment reliably surpasses 98% through our commitment to excellence.

Our three-stage quality control incorporates approaching assessment, in-process observing, and active quality affirmation. Unwavering quality testing guarantees long-term execution beneath car working conditions. We keep up total traceability all through the fabricating process.

Industry Applications and Expertise

Our car PCB arrangements serve different applications past radar frameworks. We fabricate sheets for AC cooling fans, car lighting, and progressed driver help frameworks. Each application gets specialized consideration to meet particular car standards.

Our encounter incorporates shopper hardware, mechanical control, and IoT applications. This wide skill brings important bits of knowledge to your car ventures. We get it the interconnected nature of present day vehicle electronic systems.

Your Partner for Automotive Innovation

Choosing Akeson Circuit Co., LTD means partnering with a manufacturer committed to automotive excellence. Our experienced team understands the critical nature of automotive safety systems. We work closely with you to ensure your Auto driver RADAR system pcb  meets all performance requirements.

Our one-stop electronic supply chain arrangements streamline your improvement handle. From beginning prototyping through mass generation, we give reliable quality and solid benefit. Contact us at  akesoncircuit@hotmail.com to discuss your automotive PCB requirements and discover how we can support your next project.
